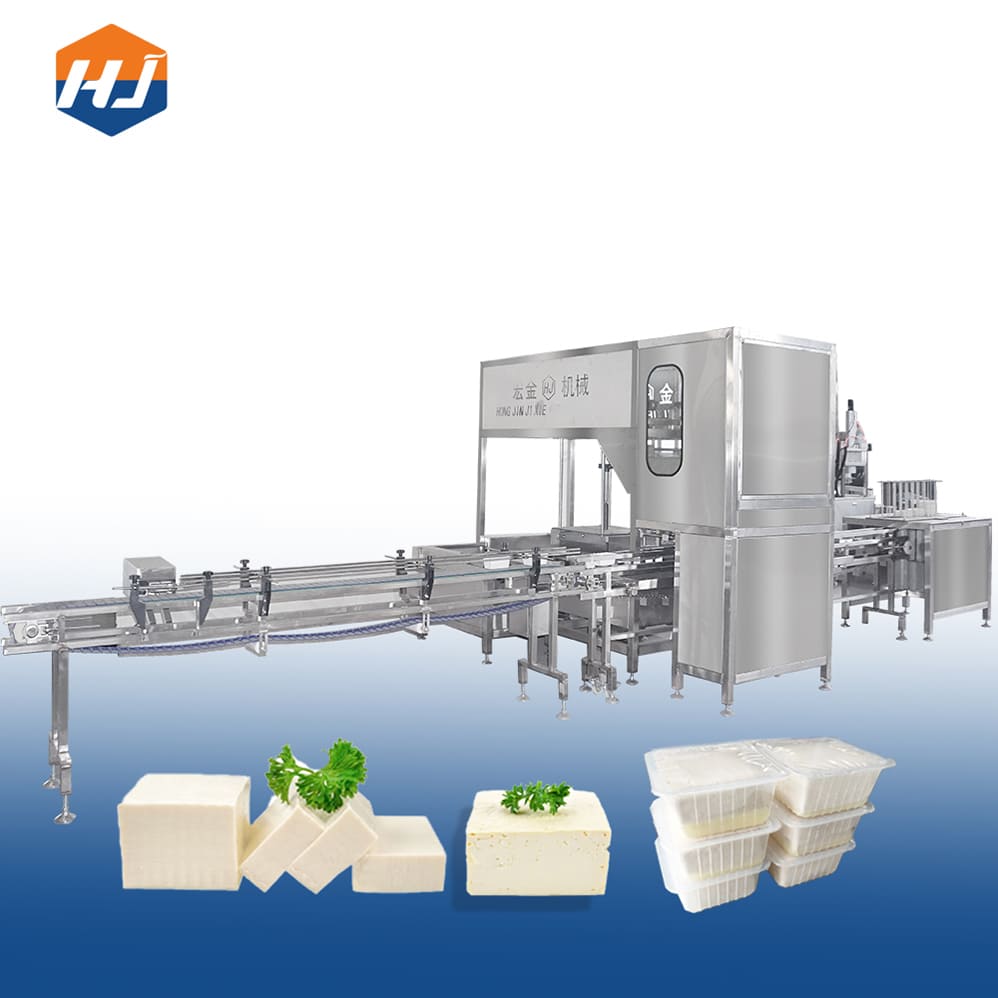

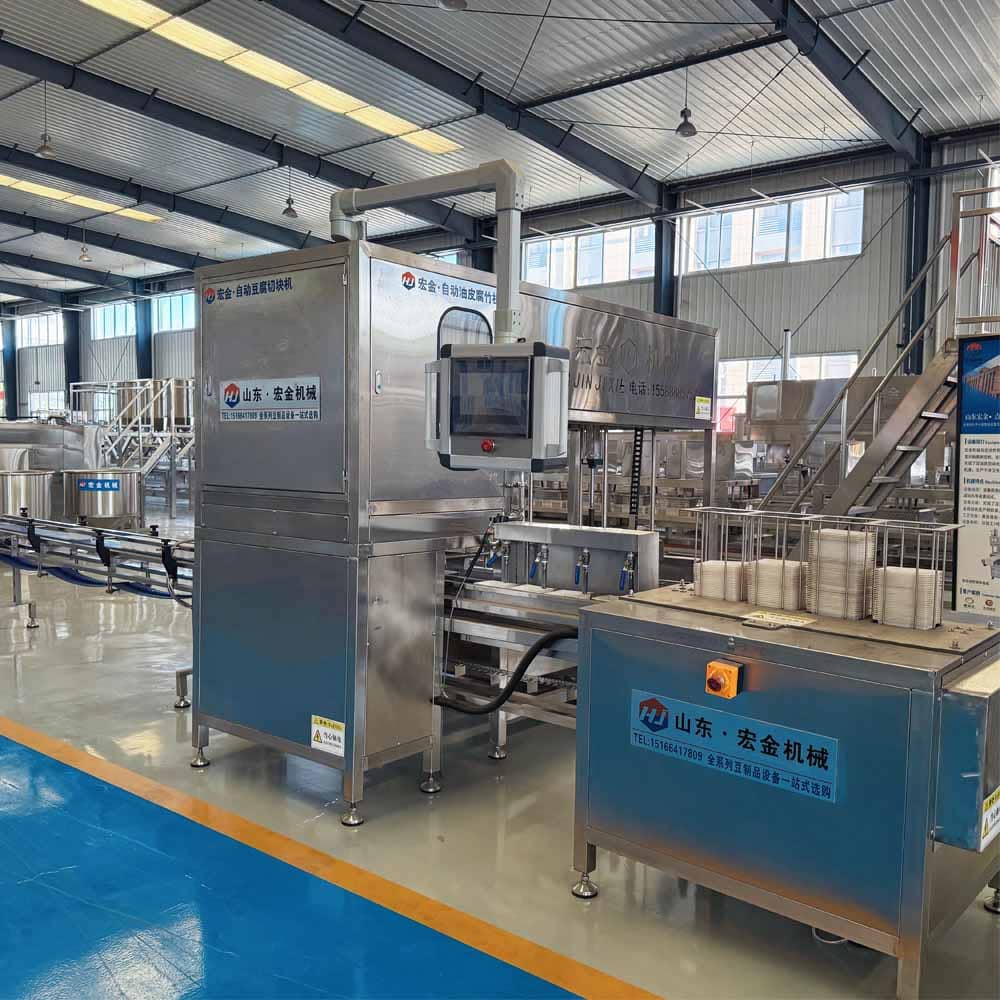

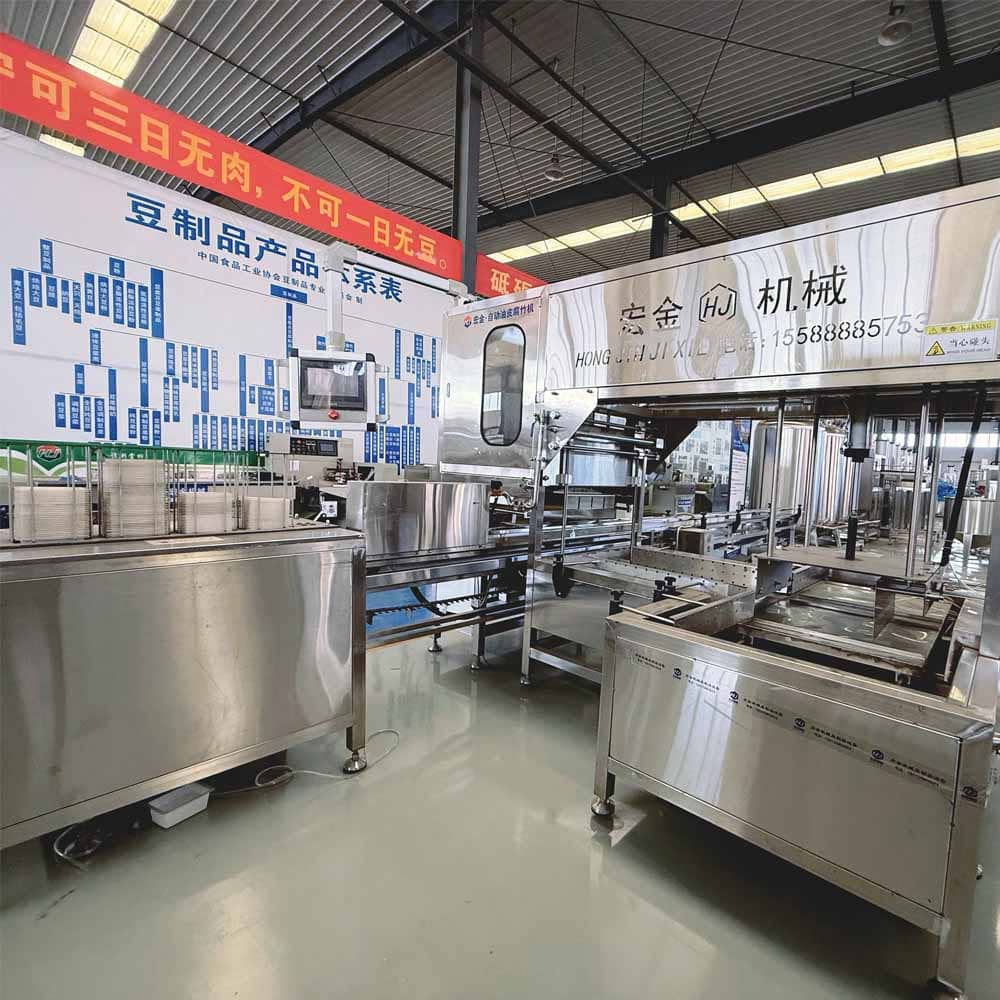

During operation, whole tofu slabs are manually placed flat at the front end of the underwater conveyor belt. The machine then automatically pushes the tofu forward in water and cuts it into uniformly sized pieces using a precise cutting mechanism. After cutting, the tofu pieces are gently separated in the water and smoothly dropped into individual packaging boxes below. Operating entirely in a water environment reduces friction and product damage, ensuring clean cutting surfaces and intact tofu shape. The machine can be seamlessly connected with a tofu packaging machine to complete automatic sealing and production date printing, significantly reducing labor requirements while improving efficiency and product consistency. It is an essential unit in modern automated tofu production lines.
| Serial Number | Equipment Name | model | quantity | Specifications |
| 1 | Automatic box dropping system | HJ-QKBZ-LH | 1 | The box drops automatically at a constant speed; it is made of stainless steel. |
| 2 | Automatic water purification filling device | HJ-QKBZ-SGZ | 1 | 304 stainless steel valves |
| 3 | Packaging box conveying system | HJ-QKBZ-HSS | 1 | PE food-grade material, conveyor chain automatic conveyor |
| 4 | Tofu conveyor trough | HJ-QKBZ-PSS | 1 | The material is 304 stainless steel with a δ=2.5 mm diameter. |
| 5 | Automatic tofu pushing device | HJ-QKBZ-TD | 1 | Material made of 304 stainless steel |
| 6 | Infrared recognition automatic dicing system | HJ-QKBZ-QK | 1 | Infrared sensors automatically identify the size of tofu cubes and cut them accordingly. |
| 7 | Automatic tofu lifting device | HJ-QKBZ-TS | 1 | Material is 304 stainless steel |
| 8 | Tofu sliced horizontally | HJ-QKBZ-HHD | 1 | Material is 304 stainless steel |
| 9 | Tofu vertical slicing knife | HJ-QKBZ-SD | 1 | Material is 304 stainless steel |
| 10 | Automated tofu packaging system | HJ-QKBZ-FZ | 1 | Pneumatic disassembly |
| 11 | Automated conveyor system | HJ-QKBZ-CS | 1 | Plate chain conveyor |
| 12 | Tofu box pneumatic propulsion system | HJ-QKBZ-HQD | 1 | The cylinder is a double-ended cylinder. |
| 13 | Electronic Identification System | HJ-QKBZ-DSB | 1 | Infrared electronic switch |
| 14 | PIC Automatic Control System | HJ-QKBZ-PIC | 1 | Made of 304 stainless steel with a δ=0.8 diameter, 70*80cm, touchscreen automatic control system. |
| 15 | Automatic coding system for sealing tofu | HJ-FMJ-DM | 1 | Ribbon coding, automatic packaging, automatic cutting, and automatic correction system |
