The first grinder separates the soybeans into soy milk and soy pulp. Water is then added to the soy pulp and stirred. A second grinder draws in the soy pulp and grinds it again to extract more soy milk. The soybeans are automatically ground twice to extract more soy milk. The soy milk is then pumped into two boiling tanks. After boiling, the soy milk flows out through an outlet and is collected in a stainless steel container. A coagulant is then added to the soy milk to make tofu pudding. The tofu pudding is scooped into a tofu pressing basket, and the machine is turned on to press the tofu.

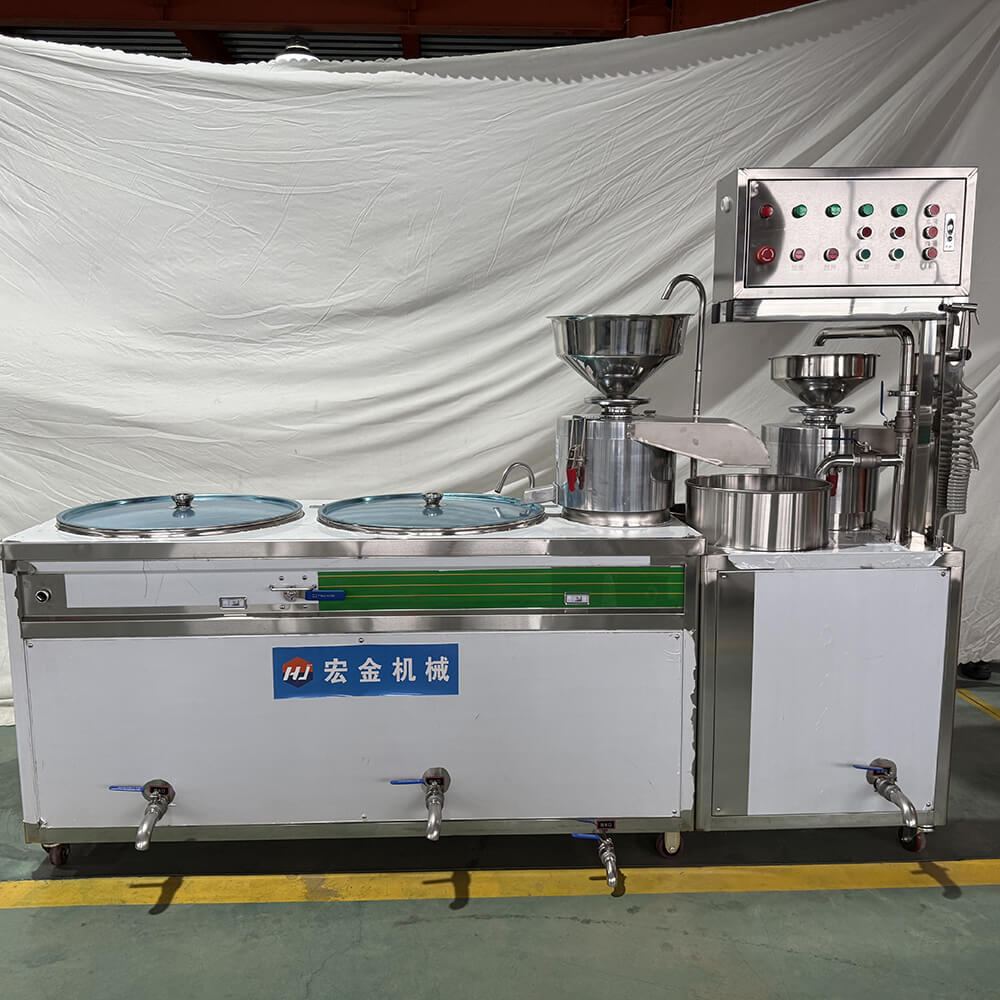

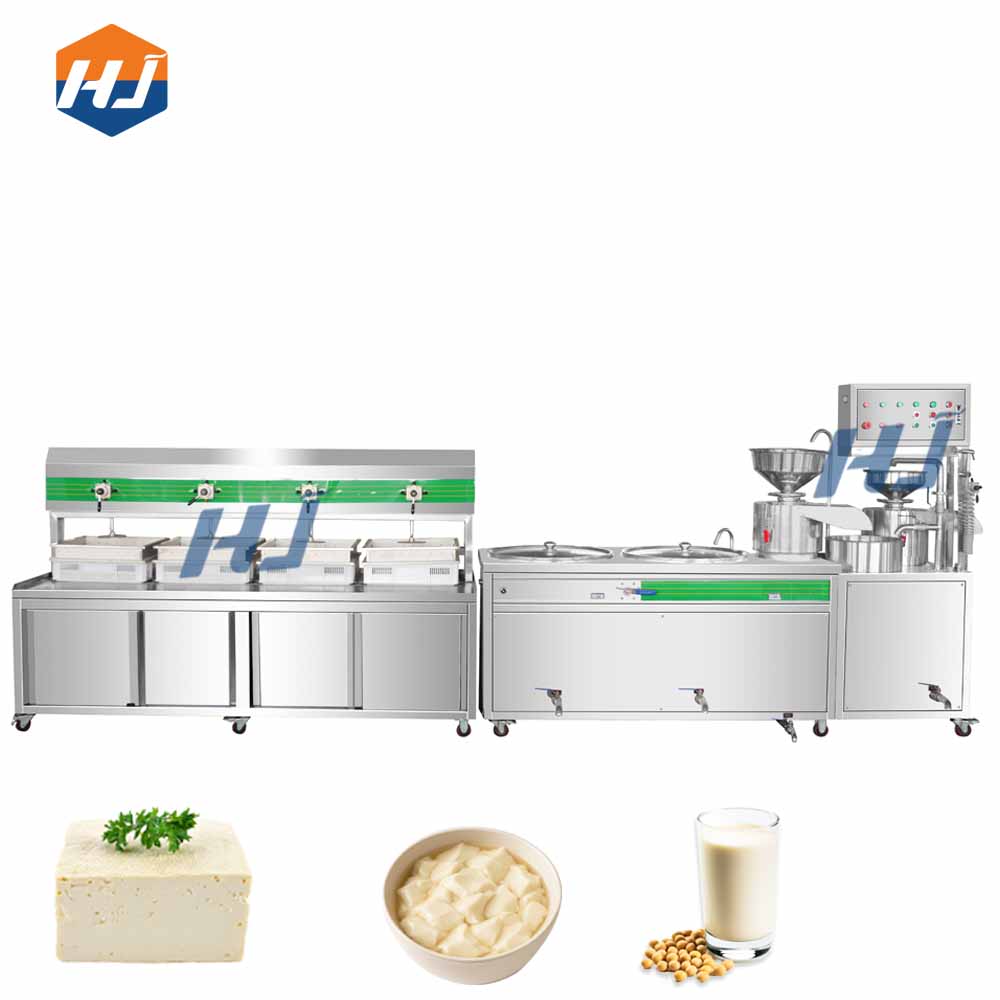

Smart Four-press Tofu Machine
Configuration
1. Electrical control box
2. Water tap
3. Two soybean grinders
4. Two soy milk cookers (with lids)
5. Steam pipe
6. Boiler
7. Soy milk pump
8. Soy milk outlet pipe
9. Raw soy milk container
10. Soy pulp mixing container

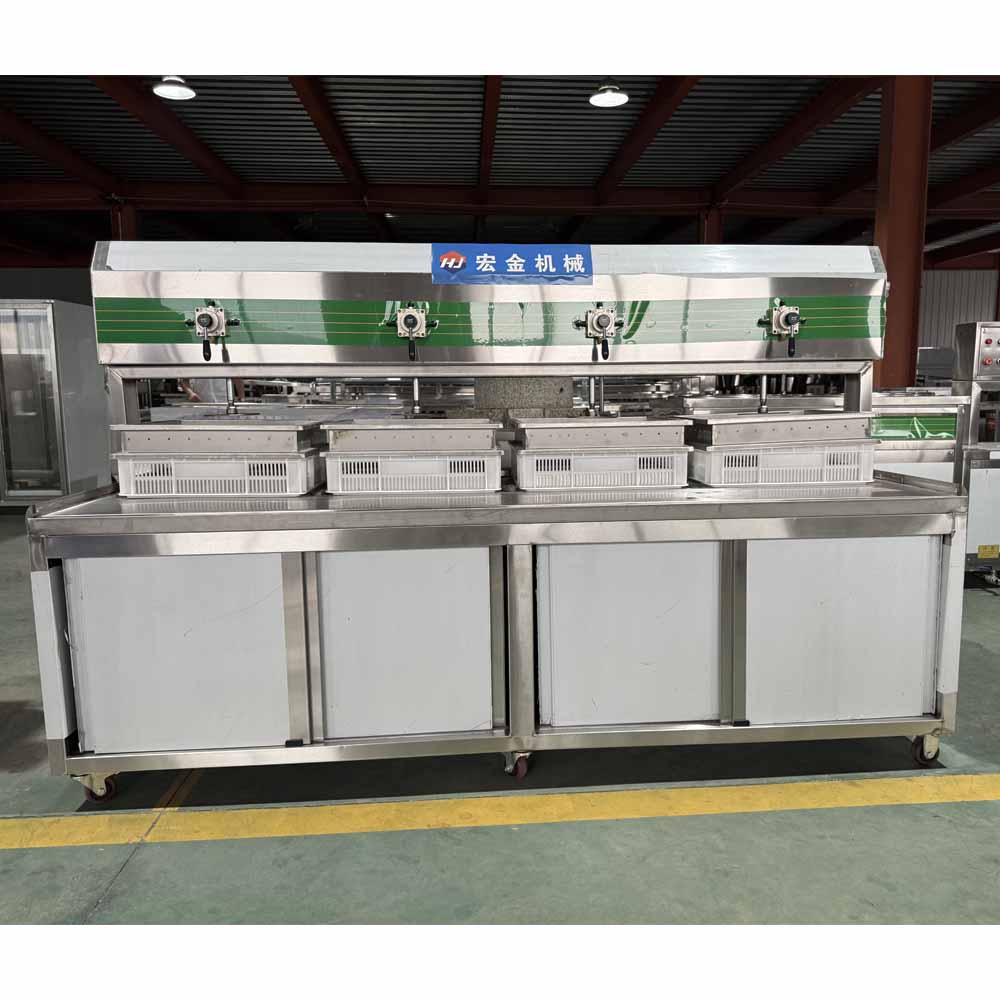

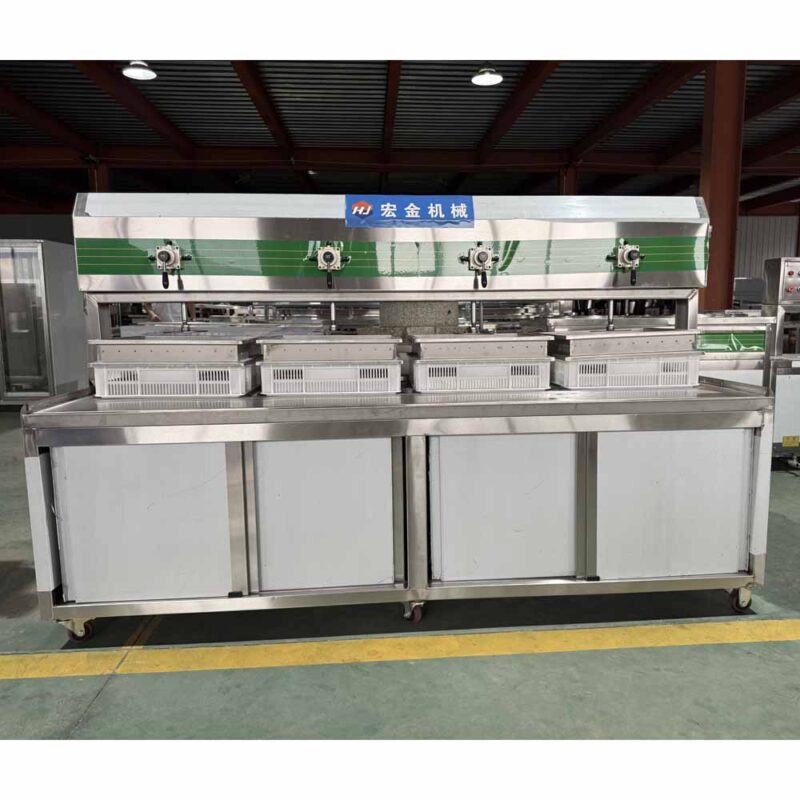

11. Four pneumatic presses
12. Four tofu pressing mold
13. Four stainless steel tofu frame
14. Four top Press Plate
15. Tofu cloth
16. Casters
