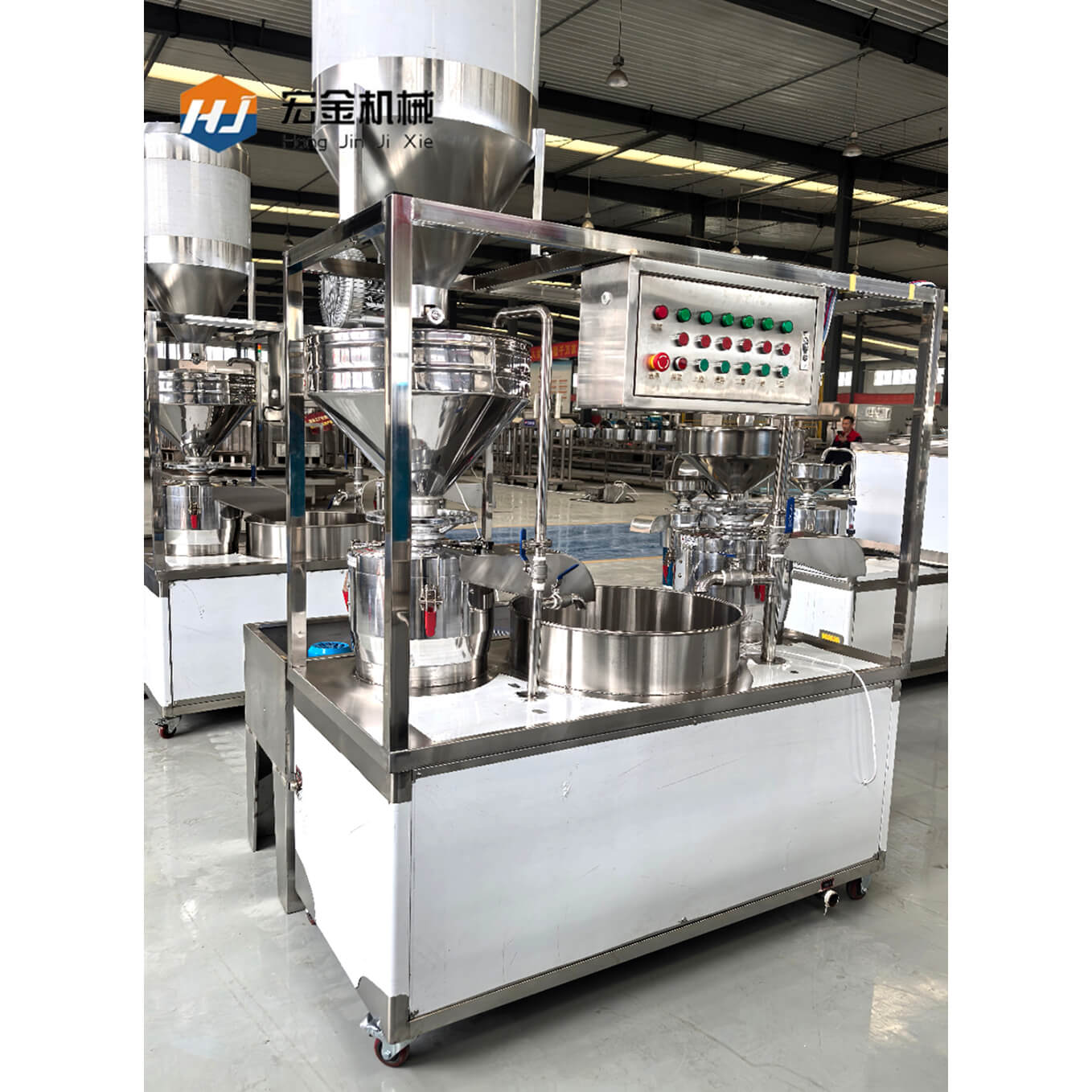

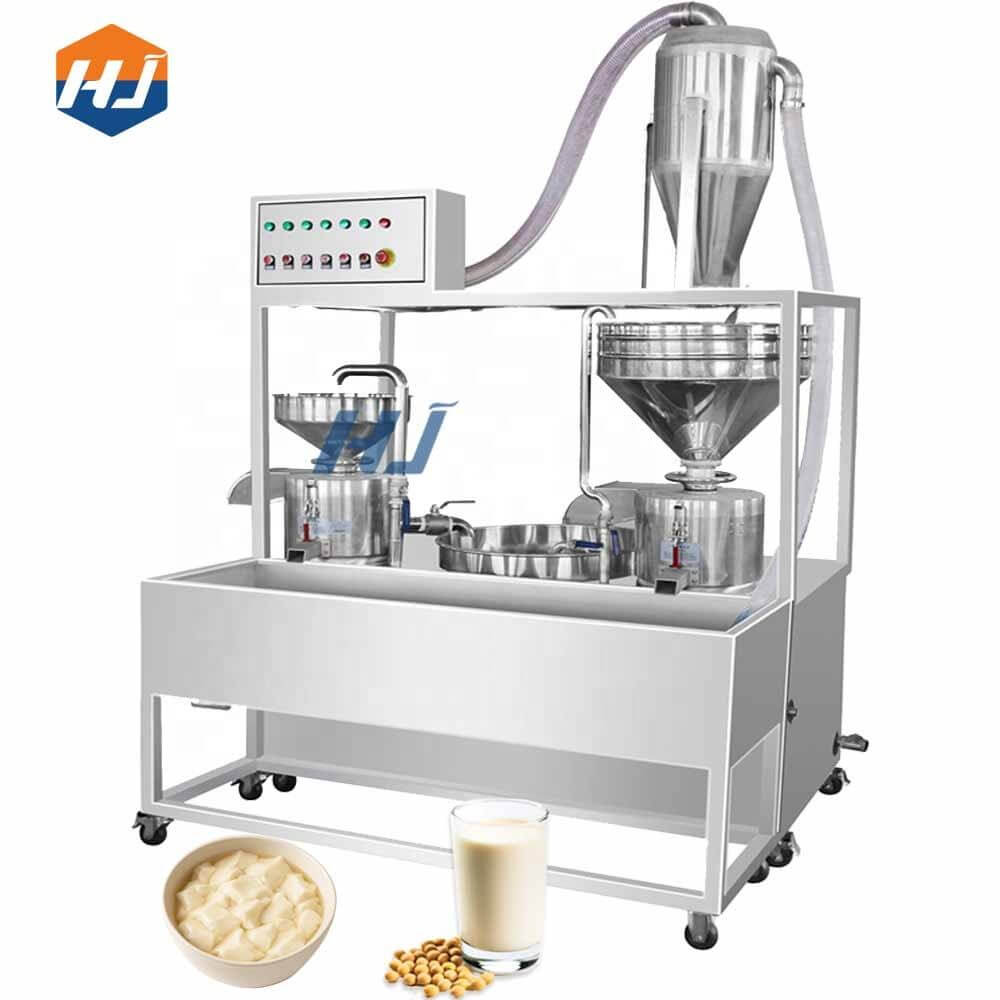

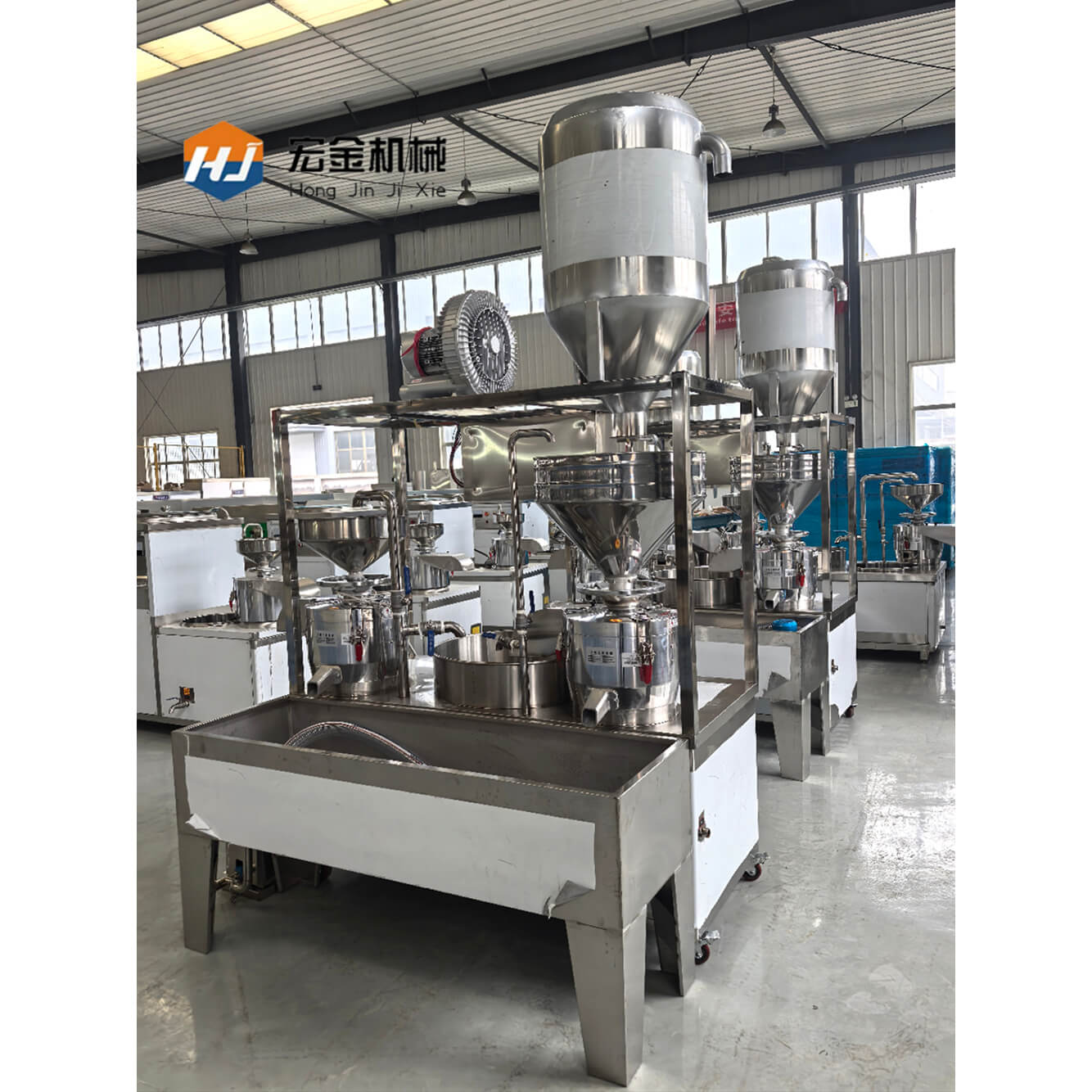

This dual grinder system integrates vacuum soybean feeding and double-pass circulation grinding technology, enabling automatic and continuous soybean extraction with higher yield.

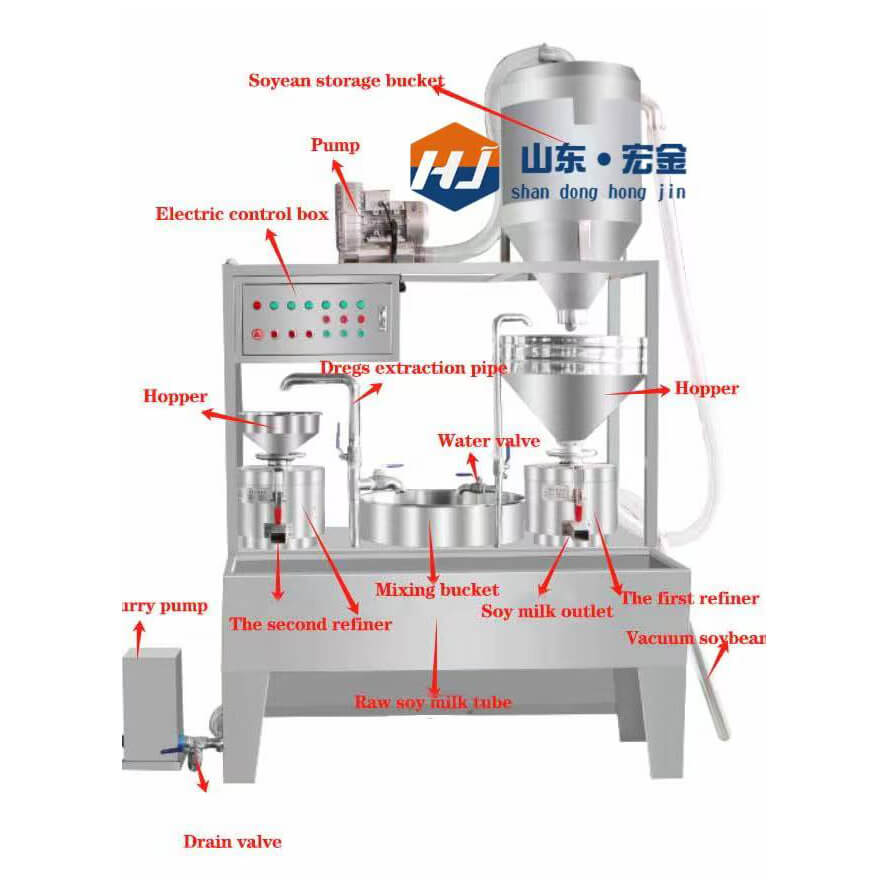

The machine uses a vacuum suction device to automatically lift soybeans into the upper storage unit, then accurately feeds a fixed quantity into the first grinder, where real-time separation of soymilk and okara is completed efficiently. The discharged okara naturally falls into the mixing tank, where water is added for high-speed blending to form a smooth and uniform slurry. This slurry is then transferred to the second grinder through a sealed pipeline using a circulation pump, allowing secondary fine grinding and deeper extraction of residual soy liquid and protein.
With the optimized two-grinding process, this system achieves a significantly higher soymilk extraction rate, richer concentration, and stronger soy aroma, while improving raw material utilization and overall production efficiency. It is an ideal high-performance solution for modern tofu and soy-food production lines seeking high yield and reduced labor cost.
